To determine the number of columns and their sequence, use the Line Info list.
Definition of own columns

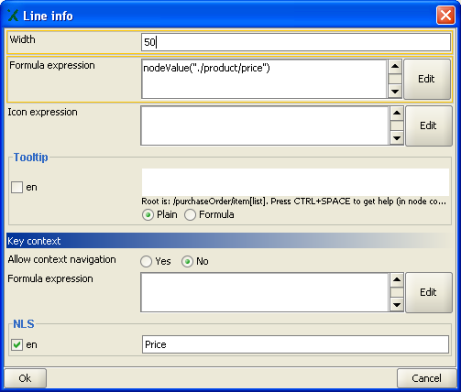

Definition of a single column
Fieldname | Default | Description |
|---|---|---|
Width | 100 | Defines the column width in pixel. |
Formula expression |
| Defines the content of this column over a formula expression. |
Icon expression |
| Defines a formula expression that returns the icon name as a result. The icon is displayed above the name within the class path. |
Allow context navigation | No | Defines whether context navigation for a key element (Key) is active. The context navigation permits to return to the place, where a key (Key) was selected as reference (KeyRef). |
Formula Expression |
| Defines a formula expression for the display of the reference value (KeyRef) within the context cell. |

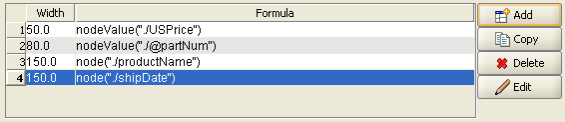

Four different line information with varying column widths were created here. The first two are a simple output of a node value (function nodeValue). However, the third and the fourth line information refer to the entire node (function: node).

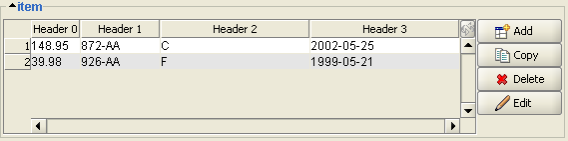

Table with own column definitions
The column headings „Header 0 - 3"can be translated into any language (see chapter National Language Support (NLS)).
