The Mode tab enables you to define the visibility, display of sub-elements and the general display criteria.
Mode-display in the XUI-Editor
Fieldname | Default | Description |
|---|---|---|
Visible |
| Defines whether this component is visible or not. Default: if no selection is present the internal display mechanism is used (for example, global settings). |
Read only | No | Defines whether this component is active (enabled) or not. |
Editable | Yes | Defines whether this component is editable. |
Serialize |
| Defines whether the contents value of this component is to be serialized (saved into an XML instance) or not. Default: if no selection is present the internal serialization mechanism is used (for example, global settings). |
Required field | No | Defines whether this component has a mandatory input field. If it does, it is colored with the designated color or the controllability is changed (with compositions). |
Children View (see 3.4.2.1.1) |
| Defines how direct sub-elements are displayed. |
View Holder (see 3.4.2.1.2) |
| Defines the place (context) where the component is to be represented. Default: if this is a complex list (CGL, ComplexGroupList), the visualization context is set internally to „self". Otherwise, „parent" is applied. |

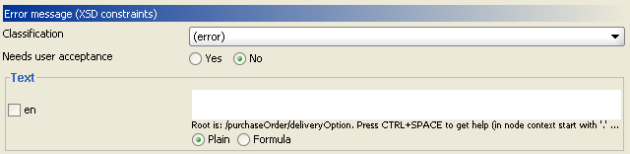

If the selected node is a primitive type, the error message can be specified as follows.
Fieldname | Default | Description |
|---|---|---|
Classification | Error | Defines the category of the error. |
Needs user acceptance | No | Defines whether the occurred errors needs a user acceptance to disappear. |
Text |
| Defines the error message text for a certain language (e.g. en - English). All this text information will be stored in the NLS file. |
